Common Used Torque Settings

I made this page so that all the most commonly used torque setting can be found listed in one location  for ease for looking up a specific torque setting instead of searching the individual DIY pages.



To convert N.m. to ft lb multiple N.m. by a factor of (0.737)
For example:  55Nm = 55 x 0.737 = (40.535 ft lb)


All below values are listed in Nm






Wheel lug nuts
Oil tank drain plug
Crankcase oil drain plug
130
50+5
50+5

Oil return tube 13mm nut
Manual Transmission filler and drain plug
Muffler to exhaust tip strap
20
30
25-30

Muffler to Catalytic converter
Muffler strap
Front brake caliper 10mm allen bolts
25-30
20
85

Rear brake caliper
Spark plug

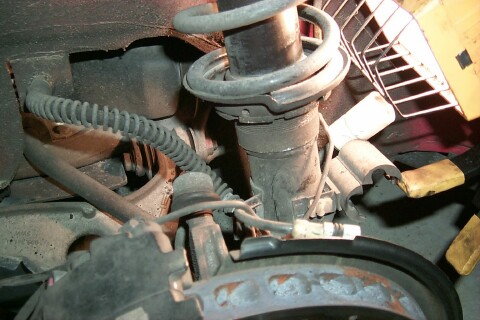

Front strut bolt (upper) to hub (Used for camber adjustment)
85
25....30
120

Front strut bolt (lower) to hub
Strut tower bolts (13mm)
Shock center bolt 21 mm
200
33
80

Front sway bar bracket
Front sway bar drop link to sway bar
Fron sway bar drop link to hub
Picture N/A
23
46
46

Rear sway bar bracket
Rear drop link to shock
Rear lower control arm to subfram
23
46
85
Rear lower control arm to hub
A/C compressor bolts
Fan belt 21mm nut
85
28
50
Fan belt inner shim allen bolt
Belt sensor roller
Seat allen bolt
9.7
15-20 (to crankcase), 9.7 sensor to bracket
23
