Adjusting/replacing V-Belts on
Porsche 993
Contributed by by:
Bill Noble
(This article is copyright
W Noble, Oct 2002. Permission is hereby granted to display and
print this article for personal non-commercial use only. For permission
to reproduce in quantity, or to use for commercial purposes, please contact
the author at william_b_noble@IEEE.org .)
If you hear a belt slipping, it's time
for an adjustment. Here are some pointers for htis procedure.
Detailed steps are in the Factory manual, pages 13-32 and 13-33.
First, before you start, have the right
tools. In fact, given the critical importance of these belts to your
car, carry these tools and parts with you at all times, along with a pair
of spare belts. Unlike a water cooled car, driving at all with a
broken fan belt will be fatal to the engine.
 |

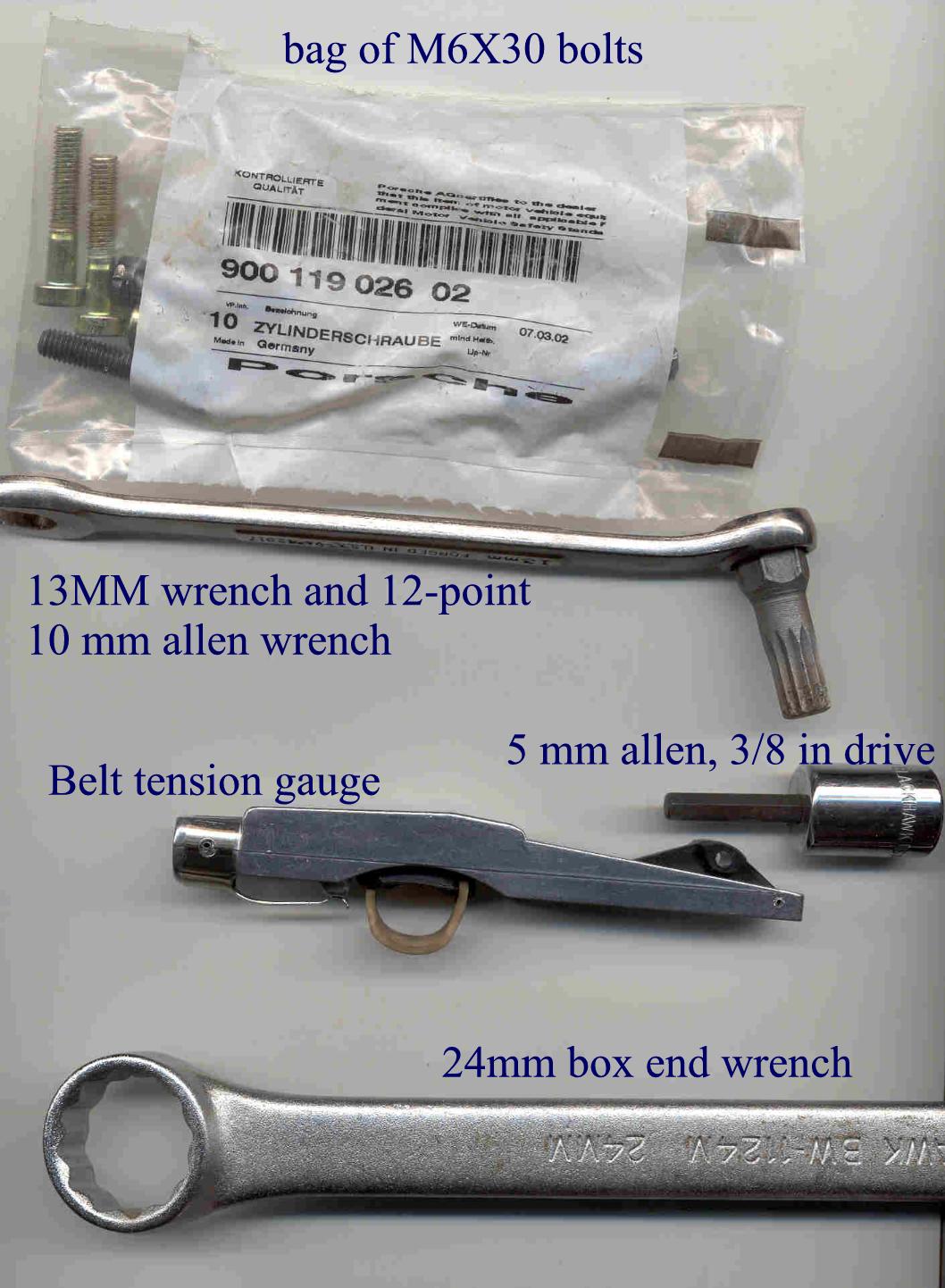

The picture shows
the tools and parts you should have:
1. A bag of M6X30
screws, Porsche part # 900-119-026-02, or equivalent. These take
a 5 mm Allen wrench.
2. A 12 point
Allen wrench, this one is made by KD, part number 2305. If you get
the KD tool, use a cut-off saw to shorten it as shown and then grind the
cut end smooth. You hold the tool with a 13 mm wrench.
3 A5 mm
Allen wrench with 3/8 drive socket - get a good quality tool, and you may
avoid stripping the M6 screws.
4. Belt tension
gauge, Gates part number 91107.
5. 24 mm box end
wrench
|
Procedure - measure tension with the tension
gauge and see what belt (if any) needs to be tightened. Specs are
at least 15 - 23 Kg cold, at least 20 -28 hot. For a new belt tension
is 23-25 Kg cold, 28-40 Kg hot.
Don't be cheap, buy the tension gauge -
it will save you a lot of hassle for only $10.
Presuming belts need to be tightened, use
the 12 point Allen wrench to hold the alternator shaft, and the 24 mm box
end wrench to loosen the nut (it is right hand thread, but may be very
tight). Use a second wrench on the 13 mm wrench if needed.
When loose, remove nut, backing plate,
outer pulley half and shims, remove belt, remove inner pulley half and
shims, remove rear backing plate.
Now, check the inner belt again (the one
that drives the fan). Presuming it's too loose, then:
remove the 3 M6 screws. Use the 5
mm Allen and a 3/8 in socket. A regular allen wrench will probably
strip the screw heads, with the socket drive you have a chance.
Ok, so you stripped one or more heads.
Try grabbing with vice grips - that may work.
Nope, that didn't work either - get a
1/4 inch cold chisel and a ball peen hammer - drive the screw in the CCW
direction by cutting into it with the chisel at about 45 degrees from tangent.
If that doesn't work, just cut the head
off with the cold chisel and unscrew the remainder with pliers.
Now, see why I said you needed some spare
screws?
After removing the 3 screws and calming
down, remove the shims, the outer pulley half, and one inner shim.
Put the outer pulley half back, then the
shims, then the M6 screws. Tighten the screws uniformly. Crank the
engine over a few times (if it starts, turn it off right away) and then
measure the tension with the gauge. If it's ok, proceed, if not,
undo the screws and remove another shim, and try again.
Note that there are two thickness of shims,
0.5 and 0.7 mm. The 0.7 mm shim has a 2 mm hole drilled in it.
My car had only 0.7 mm shims new from the factory.
Once you have gotten the inner belt properly
tensioned, then do the outer belt. Put the backing plate, inner pulley
half, and one less shims than you took out on the shaft, then the belt,
then the outer pulley half, the rest of the shims, and the 24 mm nut.
Tighten the nut to 50 ± 5 Nm (that's
pretty darned tight). Start the engine, shut it back off and test
the tension of the belt.
Put the left over bolts and stuff into
your tool kit that you carry with you.
